RS485 100A Din Rail Three Phase Multi-function Energy Meter

  • RS485 100A Din Rail Three Phase Multi-function Energy Meter
  • RS485 100A Din Rail Three Phase Multi-function Energy Meter
  • RS485 100A Din Rail Three Phase Multi-function Energy Meter
  • RS485 100A Din Rail Three Phase Multi-function Energy Meter
  • RS485 100A Din Rail Three Phase Multi-function Energy Meter
  • RS485 100A Din Rail Three Phase Multi-function Energy Meter

SDM630-Modbus V2

RS485 100A Din Rail Three Phase Multi-function Energy Meter

  • Max. 100A Direct Load
  • Work with 3P4W/3P3W/1P2W
  • 4 Module 72mm wide
  • Multi-measurement
  • kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,etc.
  • Bi-directional measurement
  • 2 Pulse outputs
  • RS485 Modbus

SDM630 Modbus / Mbus / MT / Std / Pulse / 2T

THREE PHASE MULTI-FUNCTION ENERGY METER

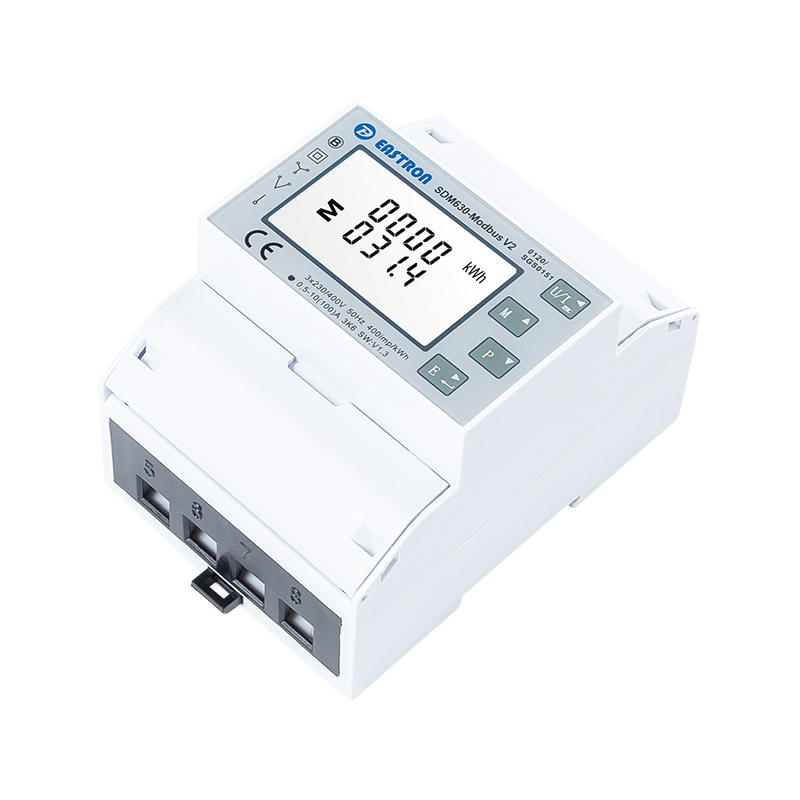

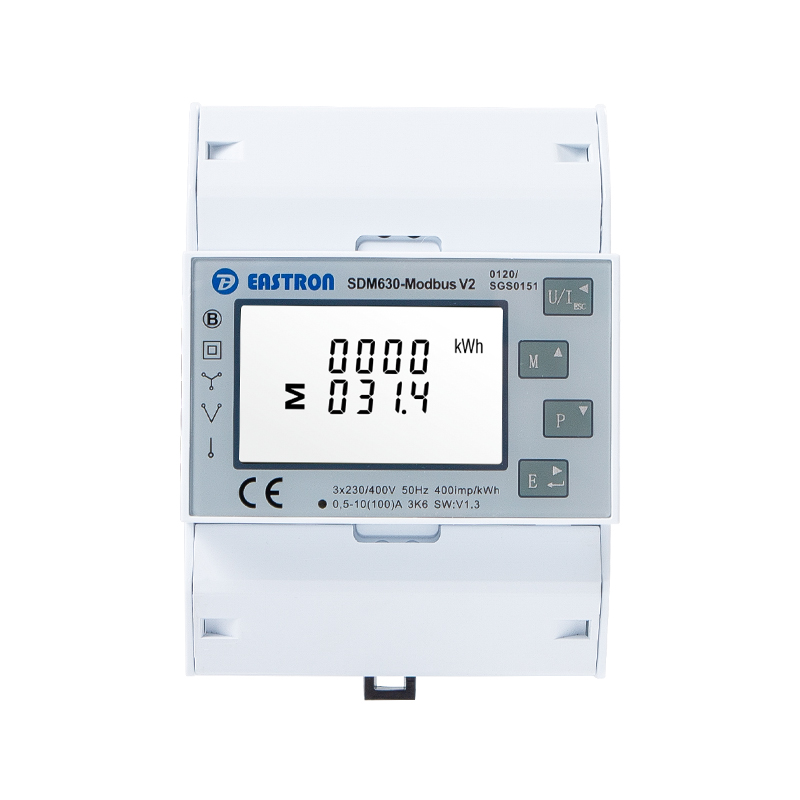

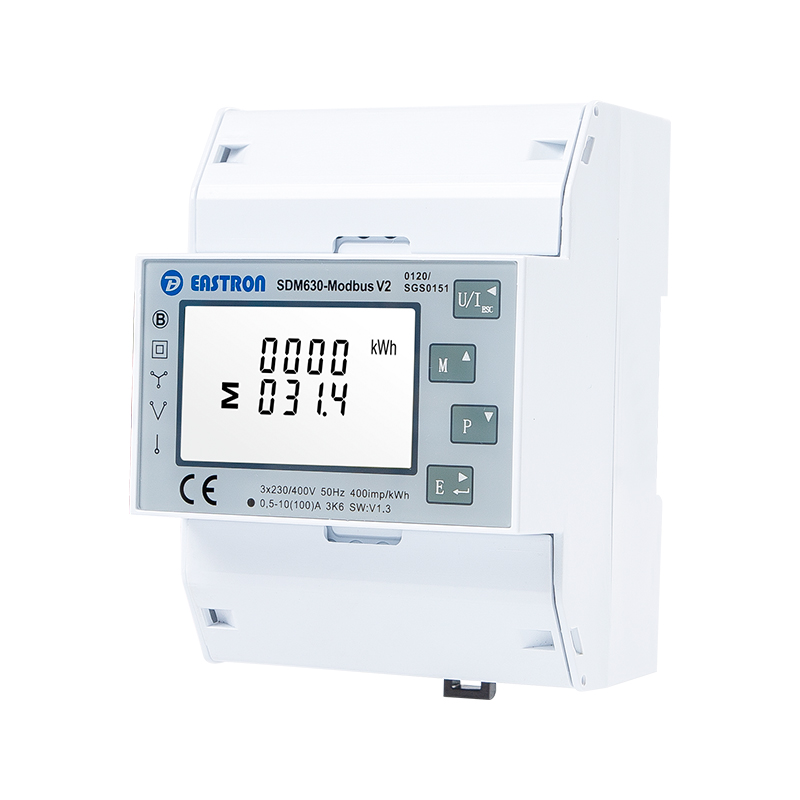

SDM630-Modbus V2 is a RS485 100A Din Rail Three Phase Multi-function Energy Meter.

The unit can measure and display the characteritics of 1p2w,3p3w and3p4w supplies, including voltage, current,power,active and reactive energy imported or exported.Energyis measured interms of kWh,Karh. demanda máxima current can be measured over preset periods of up to 60 minutes.

All electronic parameters can be set with the button and the configurationis password protected.

lt can directly connect to Max.100A, saving the cost to install externalCT. Built-in interfaces provides pulse and RS485 Modbus RTU outputs.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Voltage

±0.5%

Current

±0.5%

Frequency

±0.2%

Power Factor

±1%

Active Power

±1%

Reactive Power

±1%

Apparent Power

±1%

Active Energy

Class 1.0 IEC 62053-21

Class B EN50470-1/3

Reactive Energy

Class 2 IEC62053-23



Input & Output

Input

Current



Rated Current (Ib/Iref)

10A

Max Current(Imax.)

100A

Min Current(Imin.)

0.5A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM630-Pulse

2 Pulse Outputs for imp/exp. energy

SDM630-Modbus / MT

2 Pulse Outputs + RS485 Modbus

SDM630-Mbus

2 Pulse Outputs + M-bus EN13757

SDM630-2T

2 Pulse Outputs+ RS485 Modbus + 2 Tariffs (Dual Power Source)

SDM630-Mbus-2T

2 Pulse Outputs + M-bus EN13757 + 2 Tariffs (Dual Power Source)

SDM630M-DI

2 Pulse Outputs+ RS485 Modbus + Digital Input

SDM630-TCP

Ethernet Modbus TCP



RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Baud Rate

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
