RS485 Modbus CT Type Din Rail Three Phase Multi-function Energy Meter

  • RS485 Modbus CT Type Din Rail Three Phase Multi-function Energy Meter
  • RS485 Modbus CT Type Din Rail Three Phase Multi-function Energy Meter
  • RS485 Modbus CT Type Din Rail Three Phase Multi-function Energy Meter
  • RS485 Modbus CT Type Din Rail Three Phase Multi-function Energy Meter
  • RS485 Modbus CT Type Din Rail Three Phase Multi-function Energy Meter
  • RS485 Modbus CT Type Din Rail Three Phase Multi-function Energy Meter

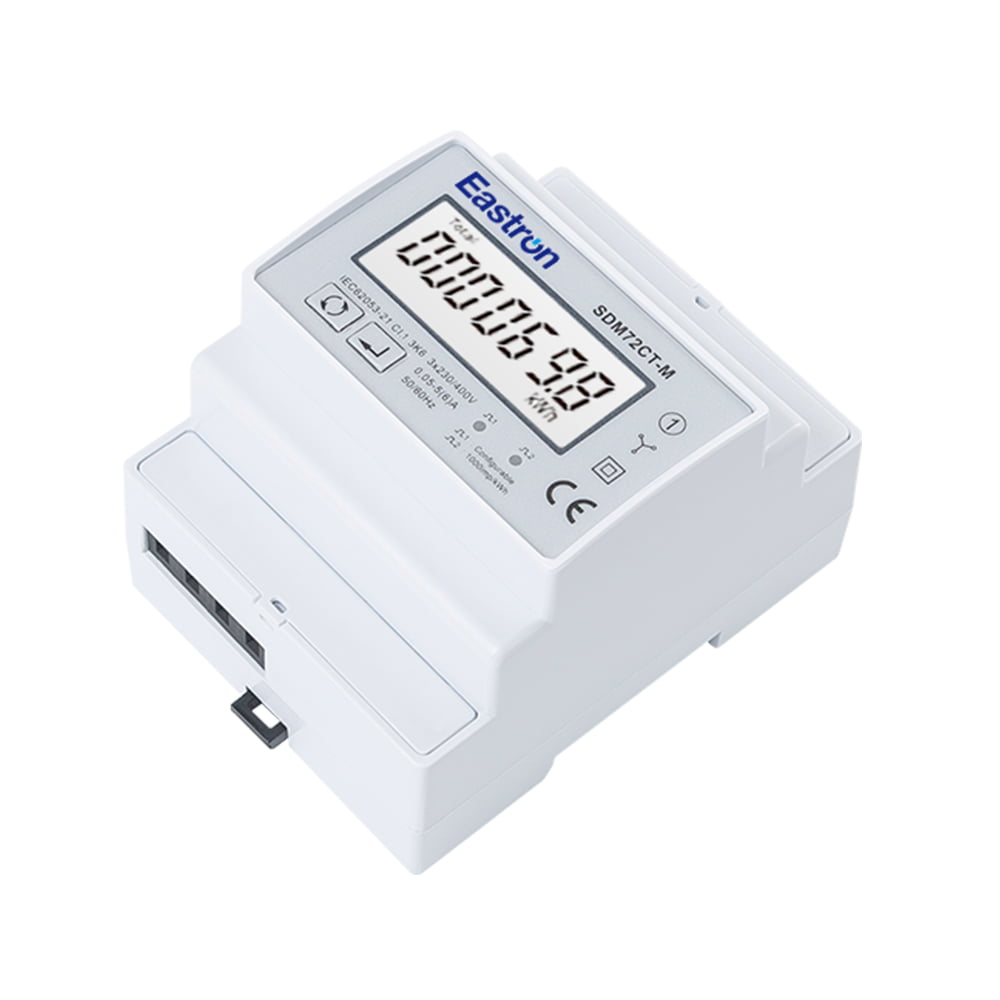

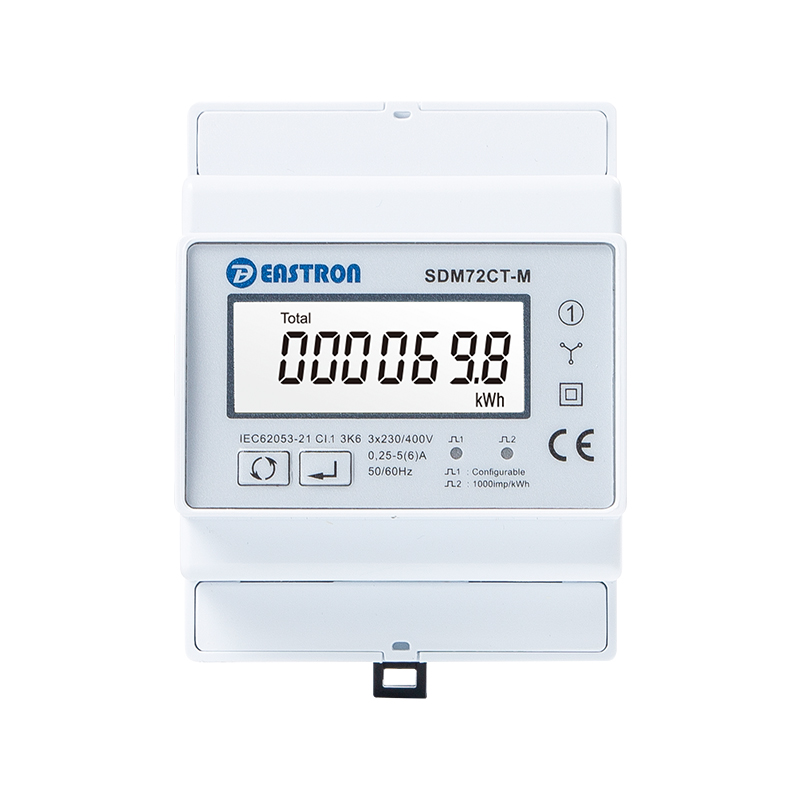

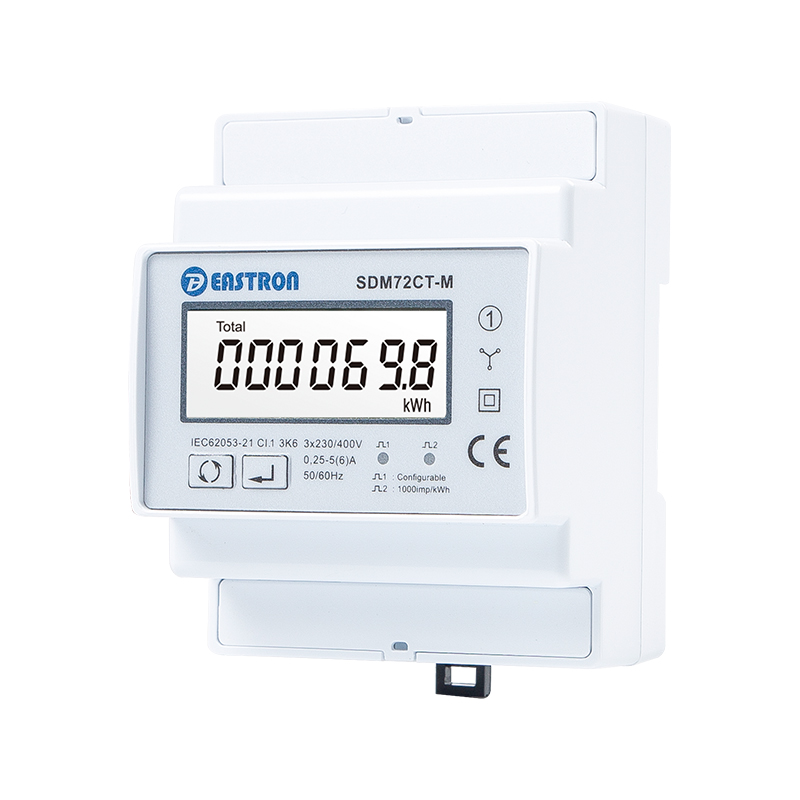

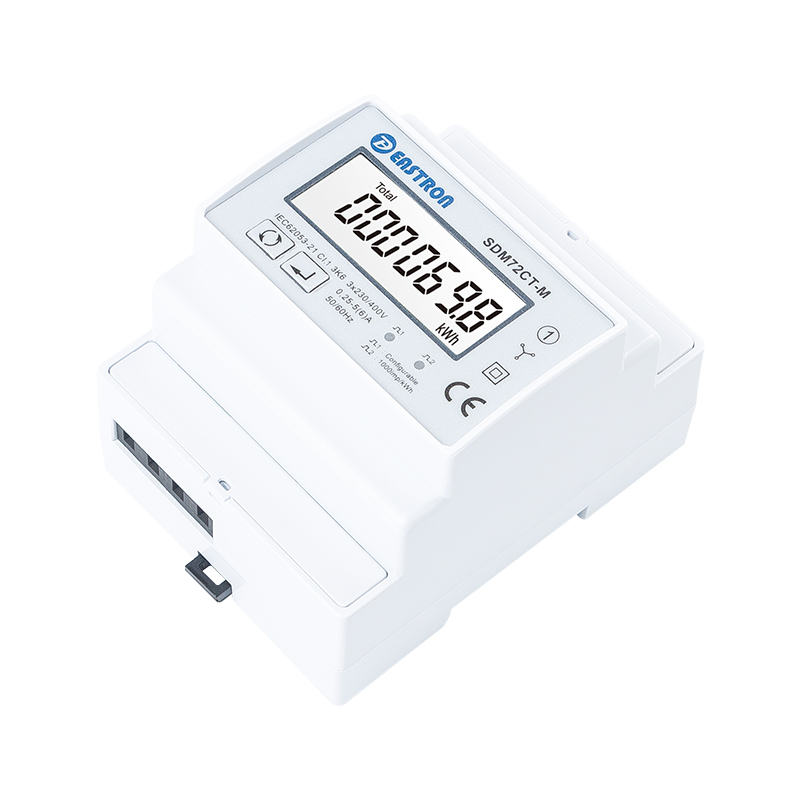

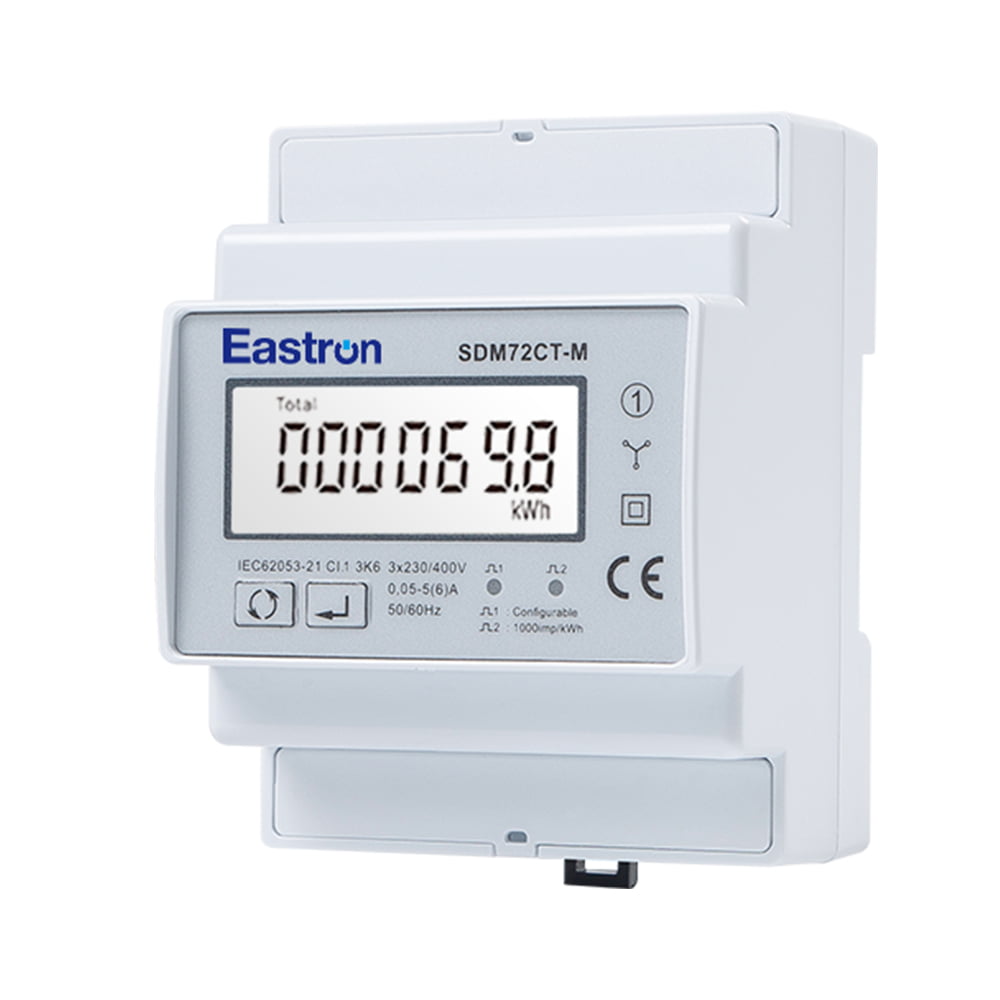

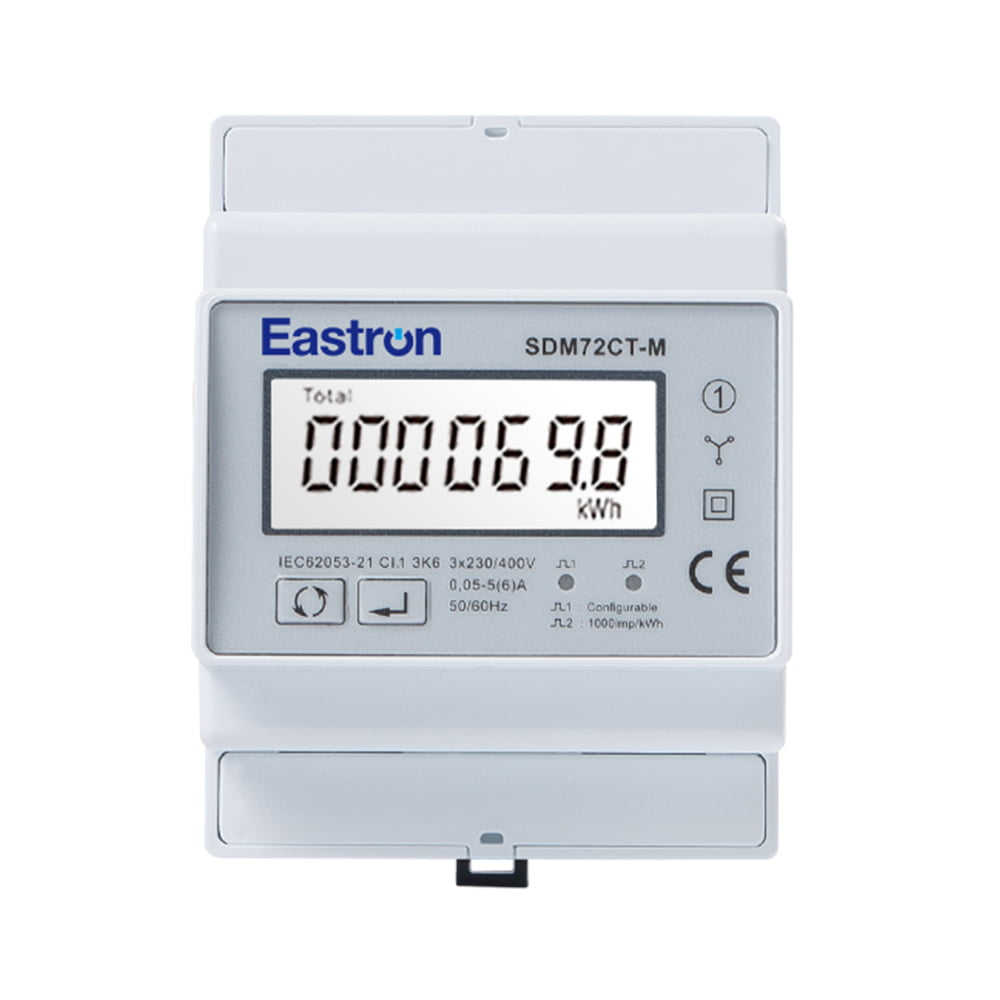

SDM72CT-M

RS485 Modbus CT Type Din Rail Three Phase Multi-function Energy Meter

  • Measures Active Energy(kWh)+ Power(W)
  • Bi-directional Measurement
  • Resettable Energy
  • RS485 Modbus + Pulse Output
  • CT Operated
  • 4 Module Wide
  • Class 1.0 Accuracy
  • 35mm Din Rail Mounting

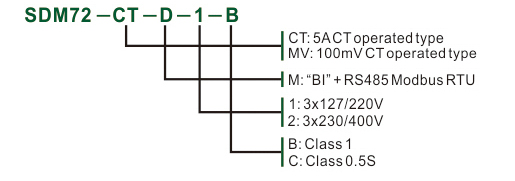

SDM72CT-M

THREE PHASE FOUR WIRE ENERGY METER

The SDM72CT-M is Three Phase multi-function energy meter.

The unit measures and displays the characteristics of three phase four wires (3p4w) supply, including voltage, frequency, current, power, active and reactive energy, imported or exported. Energy is measured in terms of kWh, kVArh. The requisite current input(s) are obtained via current transformers(CT).

This meter can be configured to work with a wide range of CTs, giving the unit a wide range of operation. Built-in interfaces provides pulse and RS485 Modbus RTU outputs. Configuration is password protected.

Electrical Characteristics

Type of Measurement

RMS on three phase AC system (3P4W)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC 62053-21 Class 1.0 / EN50470-1/3 Class B

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input-Current

CT Type

CT Primary

1-9999A

CT Secondary

1A/5A

Min Current

0.25A

Starting Current

10mA

Direct Type



Rated Current

10A

Max Current

100A

Min Current

0.5A

Starting Current

40mA

SDM72D-M

2 Pulse Output + RS485 Modbus

SDM72CT-M

2 Pulse Output + RS485 Modbus



Modbus Communications

Interface Standard and Protocol

RS485 and MODBUS RTU

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

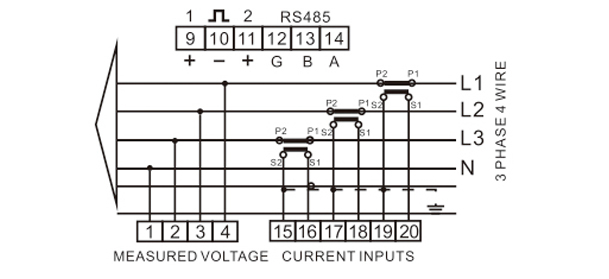

Wiring diagram

Wiring and Dimension [mm:]

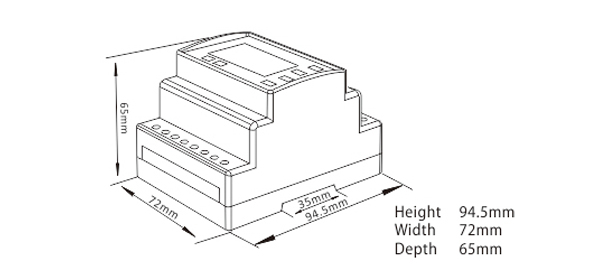

Dimensions
