1C/O+1NO Contacts Digital Multifunction Time Relay

  • 1C/O+1NO Contacts Digital Multifunction Time Relay
  • 1C/O+1NO Contacts Digital Multifunction Time Relay
  • 1C/O+1NO Contacts Digital Multifunction Time Relay
  • 1C/O+1NO Contacts Digital Multifunction Time Relay
  • 1C/O+1NO Contacts Digital Multifunction Time Relay
  • 1C/O+1NO Contacts Digital Multifunction Time Relay
  • 1C/O+1NO Contacts Digital Multifunction Time Relay
  • 1C/O+1NO Contacts Digital Multifunction Time Relay
  • 1C/O+1NO Contacts Digital Multifunction Time Relay
  • 1C/O+1NO Contacts Digital Multifunction Time Relay

ESRD-TMS1

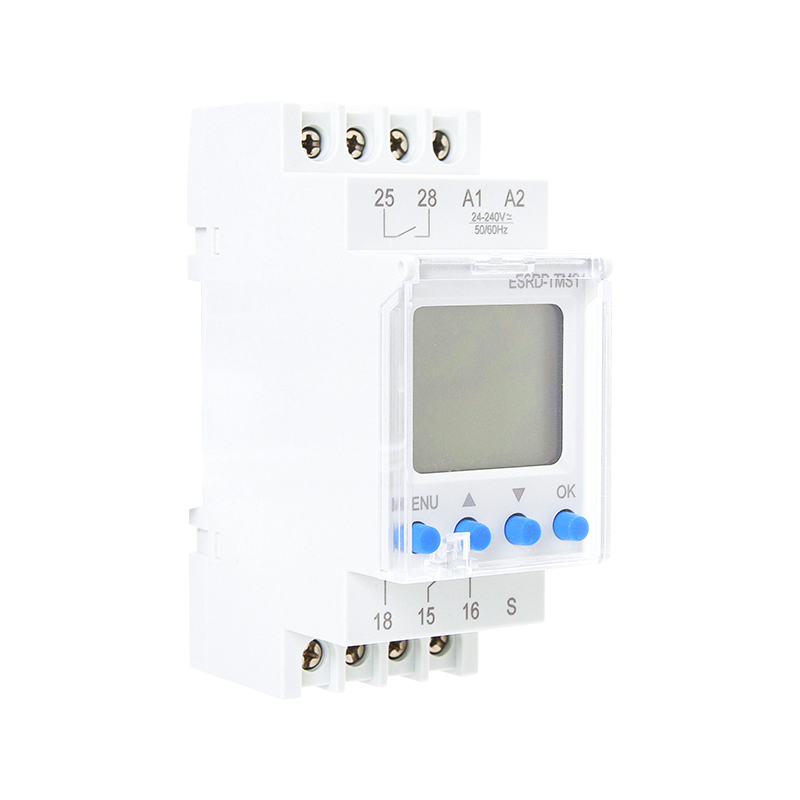

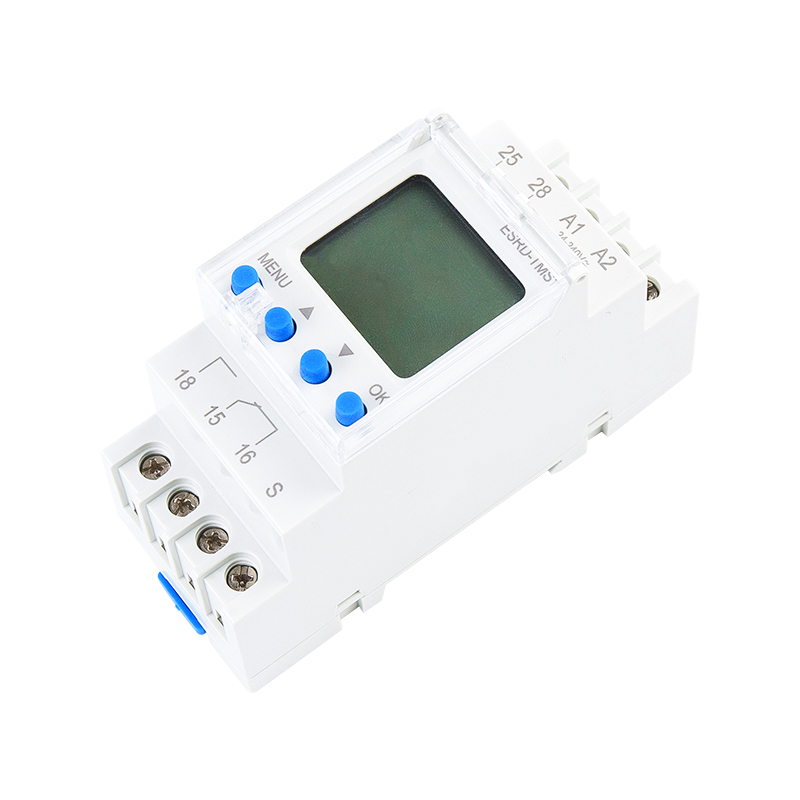

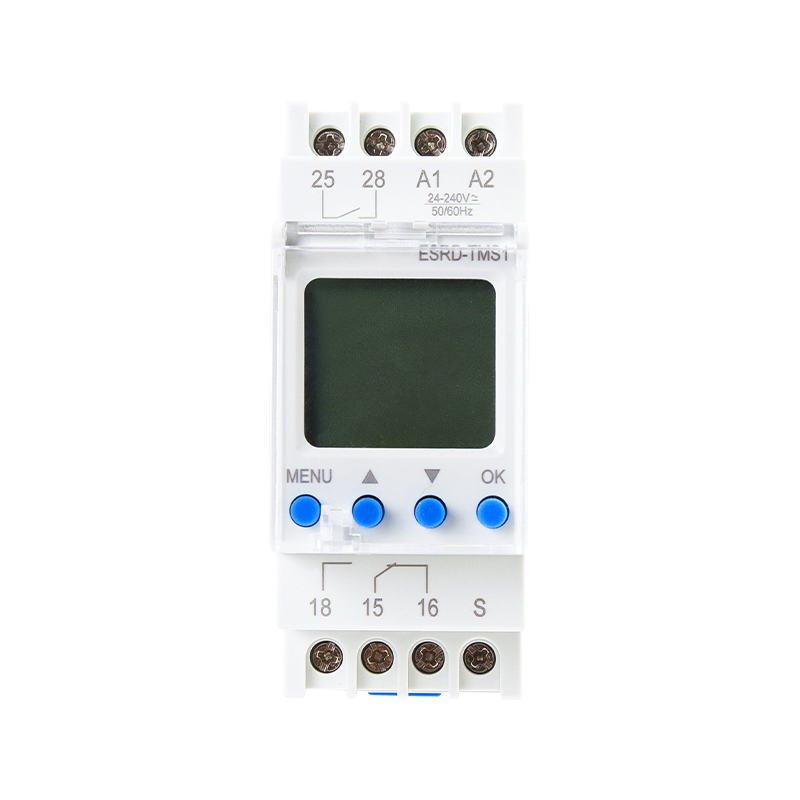

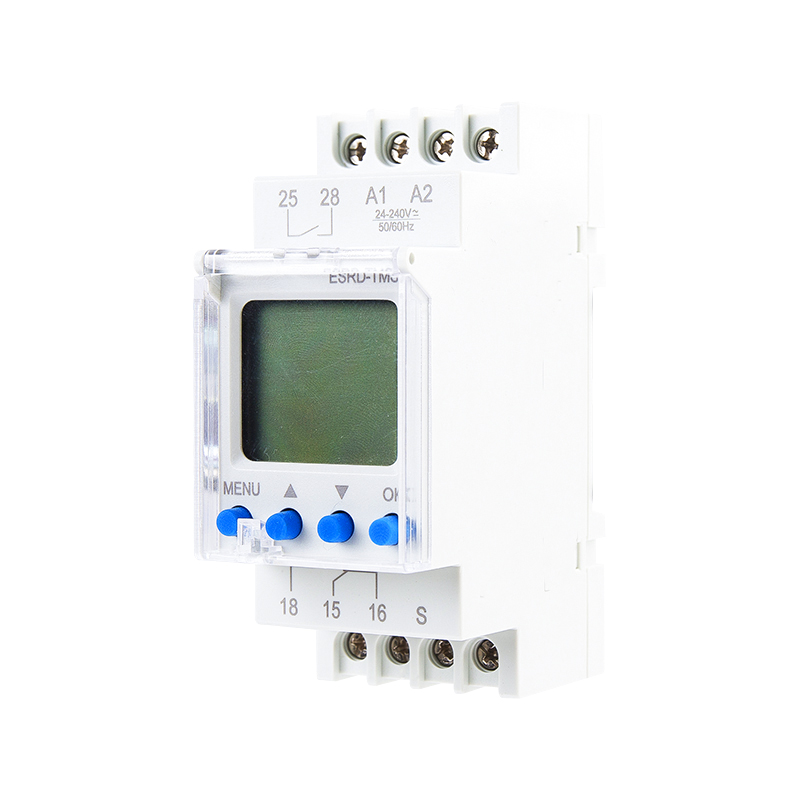

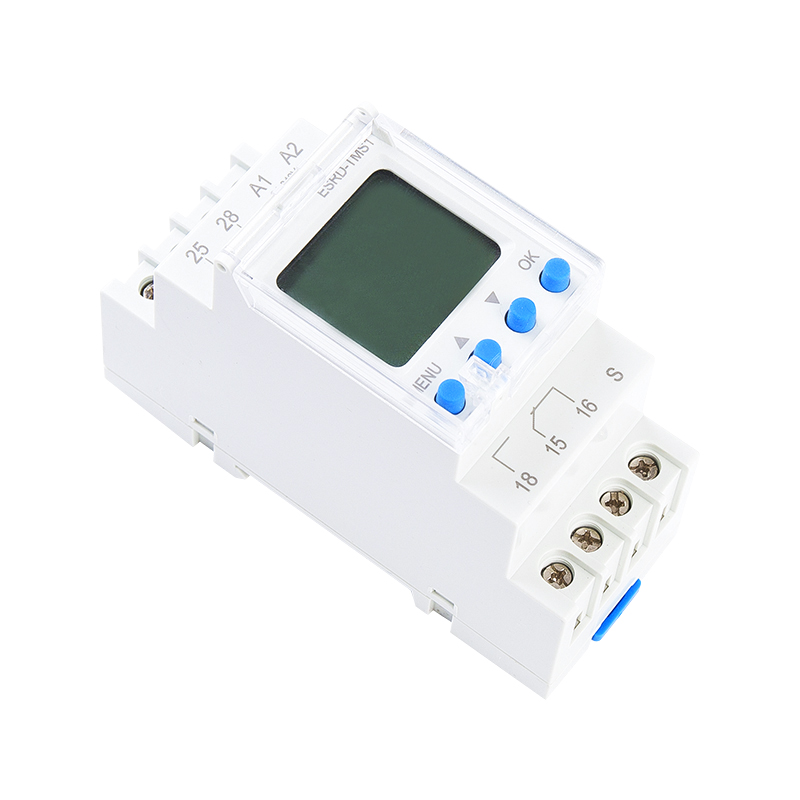

1C/O+1NO Contacts Digital Multifunction Time Relay

  • Microcontroller based
  • LCD display for functions, set delay and operating time 24 functions
  • Time range:0s-99h59min59sec.
  • AC/DC 24-240V supply voltage
  • 1C/O+1NO contacts
  • Backlighted LCD display
  • Easy setting by keys
  • 2 module Din-rail mounting
ESRD-TMS1 is 1C/O+1NO Contacts Digital Multifunction Time Relay with backlit for easy reading. It is used for the time control of industrial and domestic control systems.
It has 24 functions operating modes. With 4 buttons, easy to set and operate. It provides 1C/O+1NO Contacts, controlled by different operating modes.

Technical data

Supply terminals

A1-A2

Pulse terminal

S

Supply voltage

AC/DC 24-240V

Time range

0s-99h59min59sec

Repetition accuracy

max.±3s/24h 25V

Data readout

Back-lighted LCD display

Data storage

10 years

Output contacts

1C/0 + 1 NO

Current rating

8A/AC1

Contacts capacity

AC-15:2A

Insulation voltage

250V

Protection degree

IP20

Mechanical life

106

Protection degree

IP20

Pollution degree

3

Ambient temperature

-5℃~40℃

Storage temperature

-10℃~50℃

Wire size

0.5mm2 〜1mm2

Standard

IEC/EN60730-1/IEC/EN60730-2-7



Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

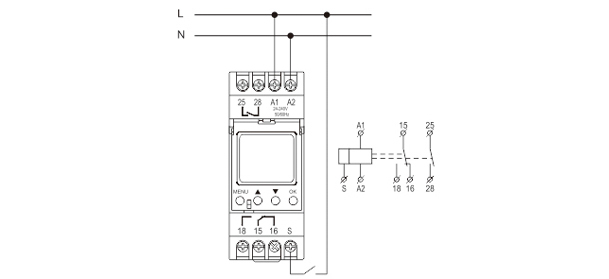

Wiring diagram

Wiring and Dimension [mm:]

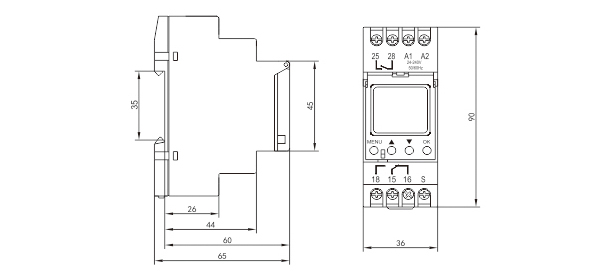

Dimensions
