Pulse Program Single Channel Digital Weekly Time Switch

  • Pulse Program Single Channel Digital Weekly Time Switch
  • Pulse Program Single Channel Digital Weekly Time Switch
  • Pulse Program Single Channel Digital Weekly Time Switch
  • Pulse Program Single Channel Digital Weekly Time Switch
  • Pulse Program Single Channel Digital Weekly Time Switch
  • Pulse Program Single Channel Digital Weekly Time Switch

ESRD-TPD1

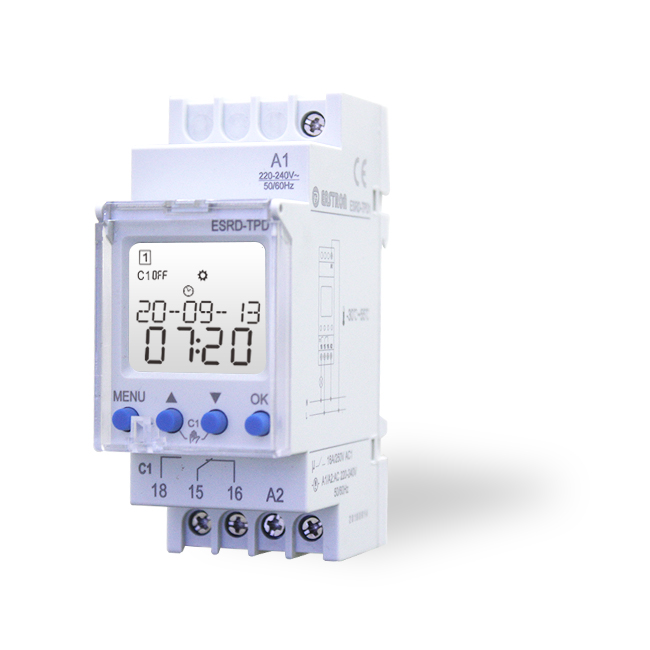

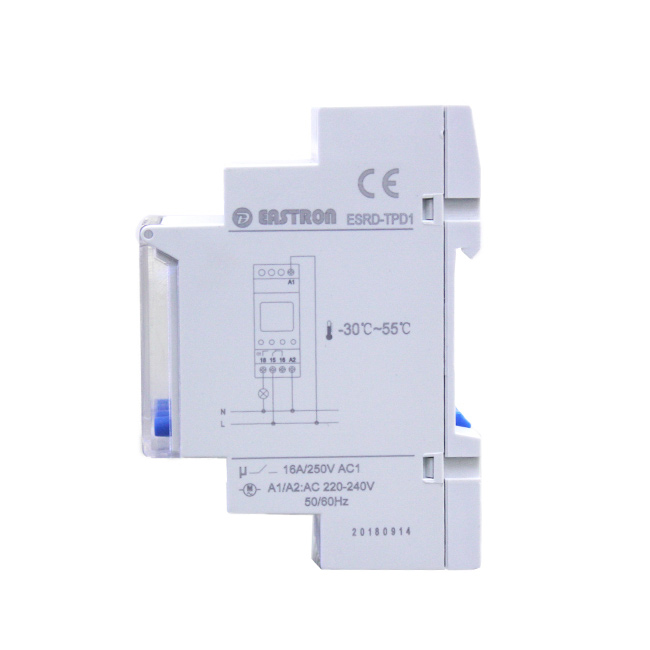

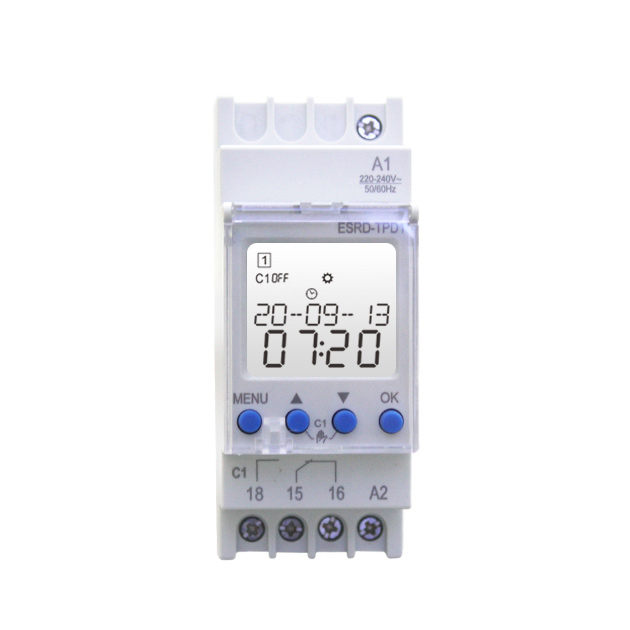

Pulse Program Single Channel Digital Weekly Time Switch

  • Weekly time switch with pulse program
  • 3 or 10 years power reserve(lithium battery).
  • 52 programs
  • Sealable cover of the front panel, easy setting by 4 keys.
  • Automatic summer/winter time switchover
  • LCD display
  • Holiday mode.
  • Single channel
  • Manual control by keys combination.
  • Automatic transfer of weekdays
  • 220-240VAC or 24-264VAC/DC input supply.
  • 2 module Din-rail mounting

ESRD-TPD1 digital time switch is used for ealization of time functions in the control systems and automation. It operates according to the set time schedual planned by the user. There is an internal battery which can protect real time clock and all the settings when the electric power supply is off.

Technical data

Supply terminals

A1-A2

Rated voltage

AC/DC 24-264V

Rated frequency

50/60HZ

Power consumption

1W

Number of channels

1

Number of programs

52

Program

Weekly, daily, pulse

Operating modes

Manual, automatic, holiday

Summer/ winter time

Off, automatic changes

Time tolerance

<1 s/day at 25 ℃

Power reserve

10 years

Number of contacts

16A/250VAC1

Switching capacity

4000VA/AC1, 384W/DC

Mechanical life

106

Rated insulation voltage

250V

Protection degree

IP20

Pollution degree

3

Ambient temperature

-20 ℃~55 ℃

Storage temperature

-30 ℃~70 ℃

Wire size

1mm2 〜4mm2

Standard

IEC/EN60730-1/IEC/EN60730-2-7



Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

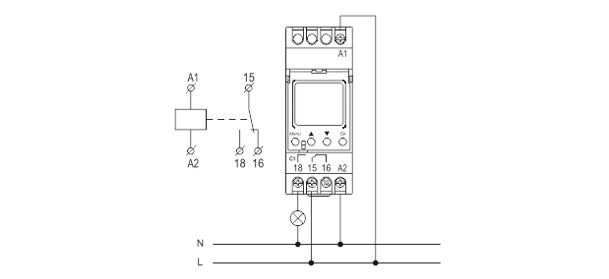

Wiring diagram

Wiring and Dimension [mm:]

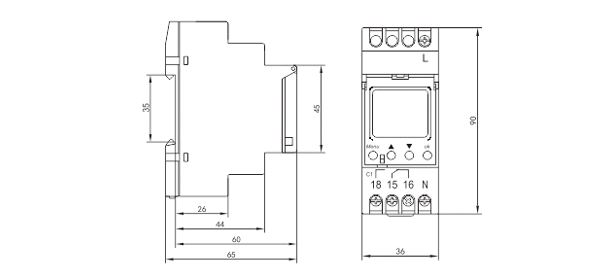

Dimensions
